Indoor Smart Kiosk Vertical LCD Floor Standing Floor Standing Digital Signage
The 55-inch Indoor Smart Kiosk is a versatile, interactive floor-standing digital signage solution designed for high-traffic commercial and public environments. Featuring advanced infrared touch technology, a sleek ultra-thin frame, and dual-system compatibility (Android/Windows), this all-in-one display delivers seamless interactivity, vivid visuals, and robust performance for advertising, information kiosks, education, retail, and corporate applications.
Display & Visual Performance
| Category |
Specifications |
| Resolution |
1920 × 1080 (FHD) – 4K optional |
| Brightness |
260–450 cd/㎡ (center) |
| Contrast Ratio |
1200:1 |
| Viewing Angle |
178° (H) × 178° (V) |
| Refresh Rate |
60Hz |
| Response Time |
8ms |
| Touch Technology |
Infrared |
| Touch Points |
20-point multi-touch (Windows) |
| Touch Response Time |
<8ms |
| Touch Accuracy |
≤3mm |
| OS Support |
Android 11.0 / Windows 10 / Linux |
| Processor |
Quad-core Cortex-A55, up to 1.8GHz, ARM G52 GPU, 1T NPU |
| Memory & Storage |
2GB DDR4 + 16GB Flash |
| Connectivity |
Wi-Fi 2.4GHz, RJ45 Ethernet, HDMI 2.0 ×1, USB 2.0 ×2, TF card slot, headphone jack |
| Audio |
2 × 5W speakers (8Ω) |
| Power Consumption |
~95W (operational), ≤0.5W (standby) |
| Input Voltage |
110–240V, 50–60Hz |
| Operating Humidity |
10%–90% RH |
| Lifespan |
≥50,000 hours |
Why Choose This ?
- True Interactivity – High-response infrared touch supports collaborative and engaging user experiences.
- Future-Ready Design – Upgradable to 4K and compatible with Android/Windows systems.
- Easy Deployment – Freestanding design with wheels option for flexible placement.
- Remote Management – Cloud-based control saves time and operational costs.
- Built to Last – Commercial-grade components ensure reliability in high-use environments.

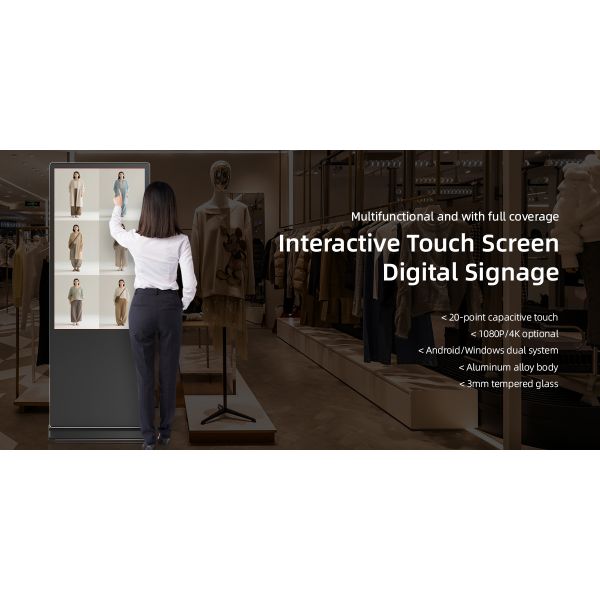

Overall product view with narrow bezel, floor-standing design, optional wheels for easy mobility. Suitable for various commercial environments.

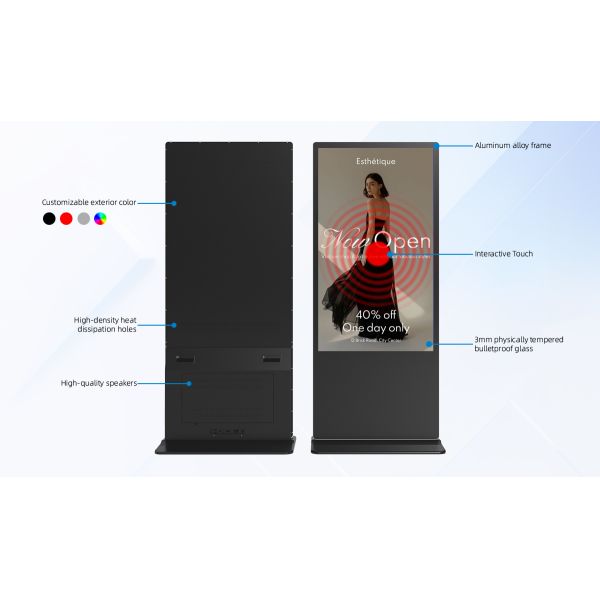

Illustration highlighting key features: ultra-slim body, active cooling, aluminum frame, and 3mm tempered glass construction.
Supports up to 20 infrared touch points. Multiple users can write simultaneously with fast response. Ideal for meetings, classrooms, and interactive sessions.
Responds to fingers or any opaque object. Touch accuracy ≤3mm, response time <8ms. Simple and intuitive to use.
Flexible system options: Android motherboard or Windows OPS module. Universal design makes switching between systems simple. Android 11 by default, Windows available as an option.
Built-in cloud-based software. Supports remote power control and content updates. Easy to manage multiple units from one platform.
The screen is protected by 3mm toughened glass—impact-resistant and scratch-proof while maintaining clear visuals and smooth touch response.
